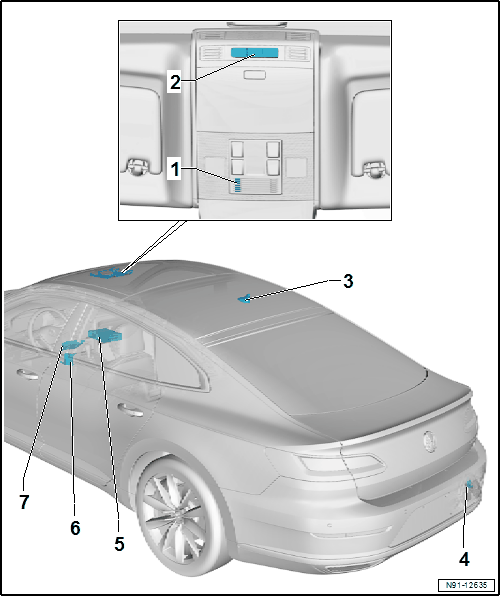

Component Location Overview - Mobile Online Services
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Telephone Microphone -R38-
- Inside the front interior lamp
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Telematics Button Module -E734-
- Removing and Installing. Refer to Telematics Button Module -E734-, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Under the rear bumper cover on the right side
- Removing and Installing. Refer to LTE Antenna 1 -R297- /LTE Antenna 2 -R306- .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Emergency Call Module Speaker -R335-
- On the center instrument panel
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Behind the infotainment system display
- Exchanging is not permitted
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
