LTE Antenna 1 -R297- /LTE Antenna 2 -R306-, REMOVING AND INSTALLING, VEHICLES WITH TRAILER HITCH: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

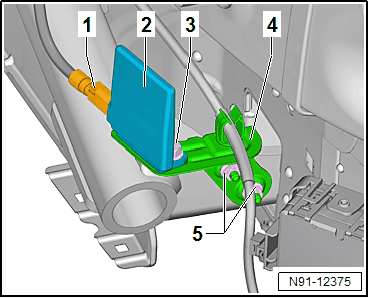

-- Release and disconnect the connector -1-.
-- Remove the bolt -3-.
-- Remove the bumper antenna -2- from the bracket -4-.
-- If necessary, free up the wires on the bracket -4-.
-- Remove the nuts -5-.
-- Remove the bracket -4- from the trailer hitch.
