Component Location Overview - Antenna Systems
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

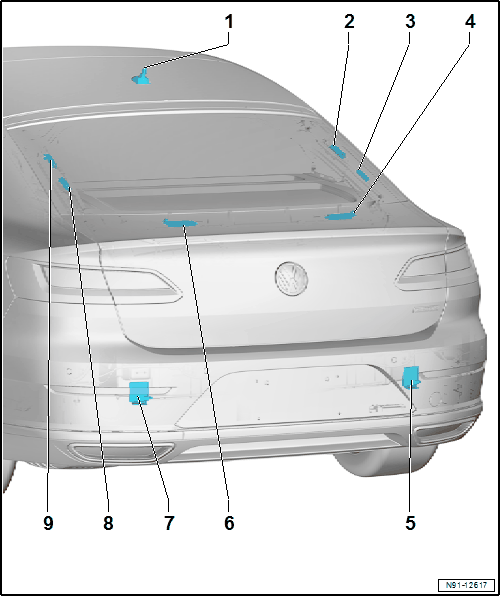

- Roof Antenna -RX5-
- Depending on the vehicle equipment with:
- GPS Antenna -R50-
- Satellite Tuner Antenna -R172-
- Auxiliary Heater Antenna -R182-
- Emergency Call Module Antenna -R263-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Depending on the vehicle equipment with:
- Right Antenna Module -R109-
- On the upper right side of the rear lid window frame
- Related to Radio Antenna -R248- /TV Antenna 1 -R55-
- AM/FM1/TV1 impedance converter
- Removing and Installing. Refer to ANTENNA MODULE, REMOVING AND INSTALLING .
- FM Frequency Filter in Negative Wire -R178-
- On the right side of the rear lid window frame in the center
- FM minus trap circuit
- Removing and Installing. Refer to FM Frequency Filter in Negative Wire -R178-, REMOVING AND INSTALLING .
- TV Antenna Amplifier 2 -R83-
- On the lower right of the rear lid
- Related to the TV Antenna 3 -R57-
- Impedance converter TV3
- Removing and Installing. .
- LTE Antenna 2 -R306-
- Depending on vehicle equipment:
- GSM Antenna -R205-
- Emergency Call Module Antenna -R263-
- Under the rear bumper cover on the right side
- Removing and Installing. Refer to LTE Antenna 1 -R297- /LTE Antenna 2 -R306- .
- Depending on vehicle equipment:
- TV Antenna Amplifier 1 -R82-
- At the bottom of the rear lid on the left side
- Related to the TV Antenna 2 -R56-
- Impedance converter TV2
- Removing and Installing. .
- LTE Antenna 1 -R297-
- Under the rear bumper cover on the left side
- Removing and Installing. Refer to LTE Antenna 1 -R297- /LTE Antenna 2 -R306- .
- FM Frequency Filter in Positive Wire -R179-
- On the left side of the rear lid window frame in the center
- FM plus trap circuit
- Removing and Installing. Refer to FM Frequency Filter in Positive Wire -R179-, REMOVING AND INSTALLING .
- Left Antenna Module -R108-
- On the upper left side of the rear lid window frame
- Related to Radio Antenna 2 -R93- /Digital Radio Antenna -R183-
- FM2/DAB impedance converter
- Removing and Installing. Refer to ANTENNA MODULE, REMOVING AND INSTALLING .
