Seat Heating Element, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

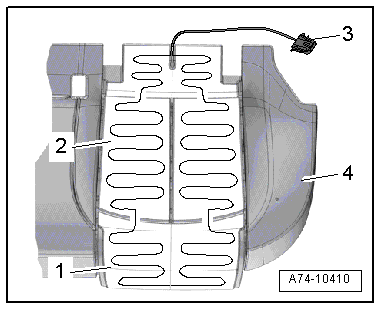

Fig 1: Disconnecting Wire -3- Directly From Old Heating Element -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the cover and cushion for the bench seat. Refer to BENCH SEAT COVER AND CUSHION, SEPARATING .

-- Disconnect the wire -3- directly from the old heating element -2-.

NOTE:

The old heating element remains on the seat cushion and will be covered by the new heating element.
