Backrest Heating Element, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

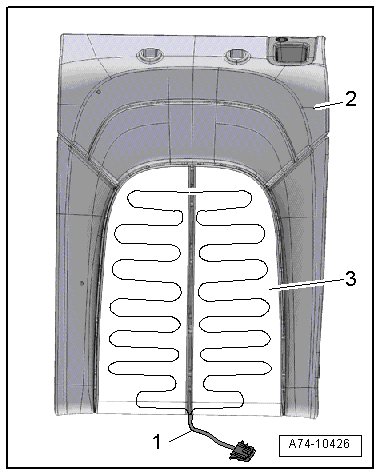

Fig 1: Cutting Wire -1- Directly From Old Heating Element -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the cover and cushion for the rear seat backrest. Refer to REAR SEAT BACKREST COVER AND CUSHION, SEPARATING .

-- Cut the wire -1- directly at the old heating element -3-.

NOTE:

The old heating element remains on the backrest cushion -2- and the new heating element is bonded over it.
