Seat Pan Cover And Cushion, Separating: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover with the cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

Vehicles with Seat Depth Adjuster

Fig 1: Identifying Cover -1-, Channels -2-, Seat Depth Adjuster Cushion -3-, Tabs -4- & Catches -5-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the molding strips -2- from the tabs -5-.

-- Disengage the seat cover from the tabs -4- on both sides using the :3370 .

-- Remove the support -3- with the seat depth adjuster seat cushion from the seat cover -1-.

Continuation for All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

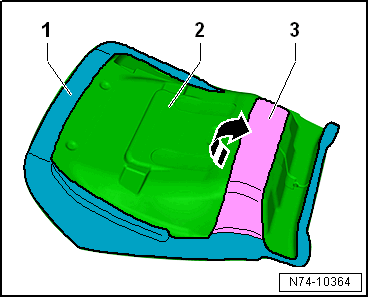

-- Remove the mounting tab -3- of the seat cover -1- in direction of the -arrow- from the seat cushion -2-.

-- Remove the seat cover -1- from the seat cushion -2-.

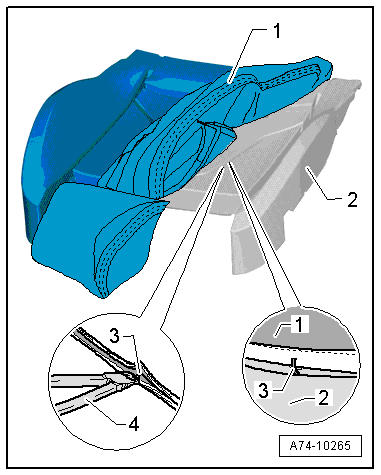

Fig 2: Identifying Cushion Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut through the upholstery clips -3- with pliers -4-.
