Seat Pan Cover And Cushion, Separating: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

Replace all opened clips -Item 1- OVERVIEW - COVER AND BACKREST CUSHION and mount again in the same location.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

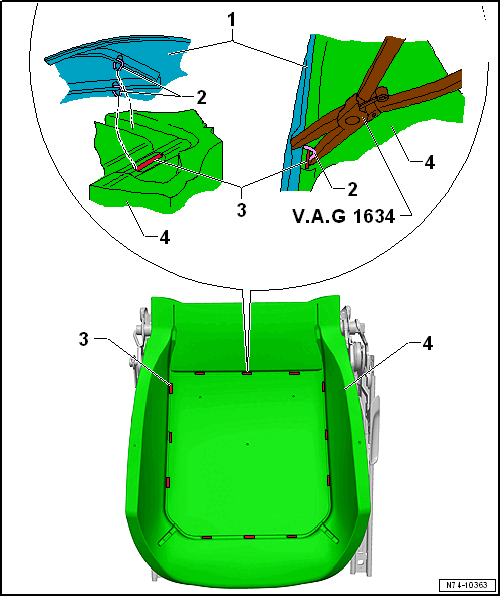

-- Pull the seat cover -1- over the cushion -4-.

-- Secure the seat cover -1- to the mounts -3- using the upholstery clips -2-.

-- To do so, use the :VAG1634 .

-- Make sure the seat cover -1- is free of folds.
