Seat Pan Cover And Cushion, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

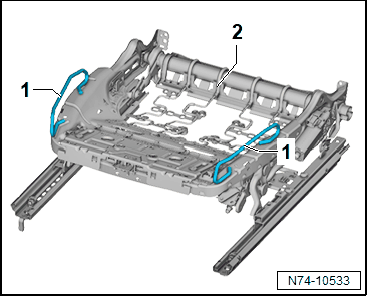

If the seat frame -2- is replaced, it might be necessary depending on vehicle equipment, to remove the brackets -1- with service equipment.
-- In this case, cover the surrounding area for example with a cleaning cloth, in order to avoid a contamination by metal shavings.
-- Remove the brackets -1- with service equipment.
-- Seal bare metal areas. Refer to Paint General Information. General information → Service Painting Paint Structure → Basic Paint Paint Structure.
Install in reverse order of removal.
