Overview - Seat Pan Cover And Cushion, Seat Depth Adjuster

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

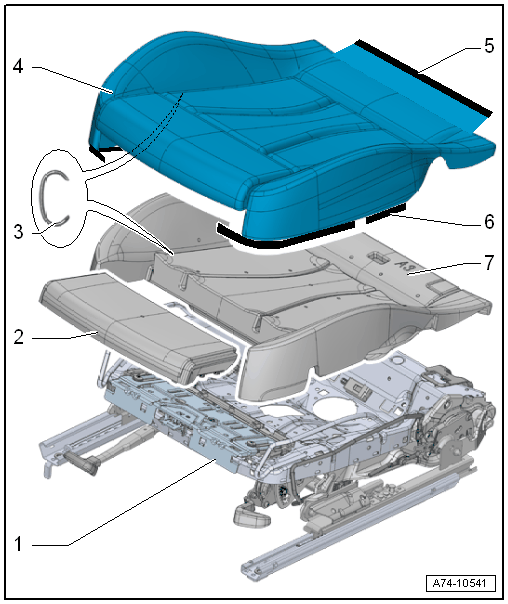

Fig 1: Exploded View Of Seat Pan Cover And Cushion, Sport Seat/Super Sport Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
Seat Cushion
- For the seat depth adjustment
- Allocation. Refer to the appropriate Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Upholstery Clip
- Replace after removing.
- For attachment of the seat cover to the seat cushion
Seat Cover
- Different equipment levels
- Allocation. Refer to the appropriate Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Molding
- Sewn into seat cover
- For engaging the seat cover on seat pan upper frame
Molding
- Sewn into seat cover
- For engaging the seat cover on seat pan upper frame
Seat Cushion
- Allocation. Refer to the appropriate Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
