Overview - Seat Heating Element

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

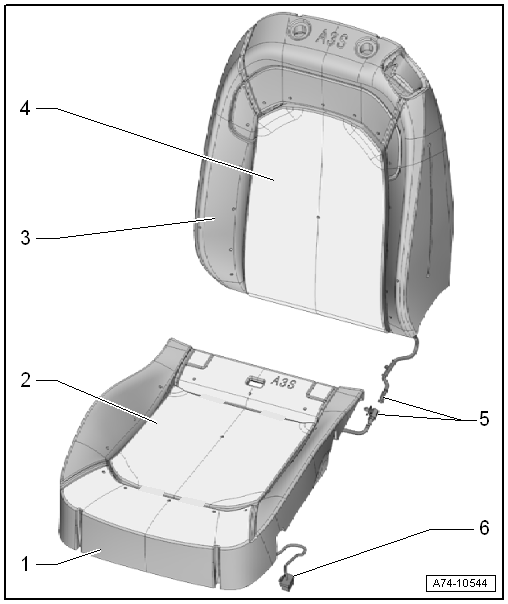

Fig 1: Exploded View Of Seat Heating Element

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Allocation. Refer to the appropriate Parts Information.
Heating Element
- Driver seat Driver Seat Heating Element -Z6-
- Passenger seat Front Passenger Seat Heating Element -Z8-
- Allocation. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
Backrest Cushion
- Allocation. Refer to the appropriate Parts Information.
Heating Element
- Driver seat Driver Backrest Heating Element -Z7-
- Passenger seat Front Passenger Backrest Heating Element -Z9-
- Allocation. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING .
Wire
Wire
