Overview - Cover And Backrest Cushion

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

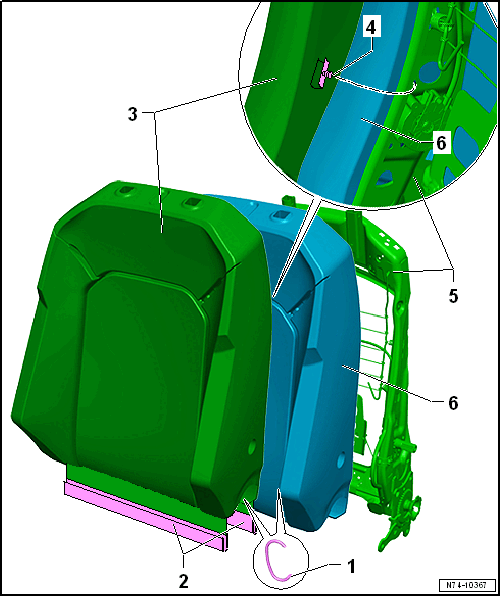

Fig 1: Exploded View Of Backrest Cover & Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upholstery Clip
- Replace after removing.
- For attaching the backrest cover to the backrest cushion
Molding Strip
- Sewn into backrest cover
- A zipper is installed instead of a molding strip on seats with a pass-through
- "Zipper" allocation. Refer to the appropriate Parts Information.
Backrest Cover
- Different equipment levels
- Allocation. Refer to the appropriate Parts Information.
- Backrest cover and cushion, removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest cover and backrest cushion, separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
Clip
- For securing the backrest cover on the rear frame
- Right and left
- Not on all versions
Backrest Frame
Backrest Cushion
- Allocation. Refer to the appropriate Parts Information.
- Backrest cover and cushion, removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest cover and backrest cushion, separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
