Rear Seat Backrest, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

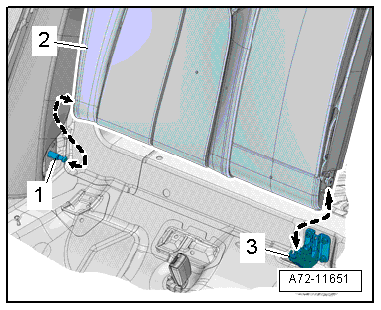

Fig 1: Identifying Rear Seat Backrest, Center Support & Outer Mounts
GWWA72-11651Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the rear seat backrest -2- onto the outer bearing pin -1-.

-- Place the rear seat backrest -2- in the center support -3-.

-- In vehicles equipped with seat heating, connect the backrest heating connector.

Further installation is the reverse order of removal.
