Pass-Through Cover Frame, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Fold down the center armrest and open the pass-through door.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

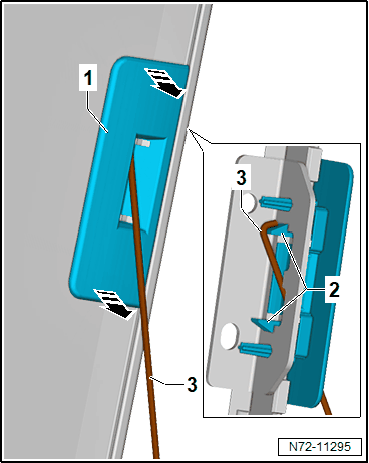

-- Unclip the trim -1- from the rear seat backrest -arrows- and remove it using the :VAS895015 .

-- Disengage the locking tabs -2- alternating using the :T40207 -3-.

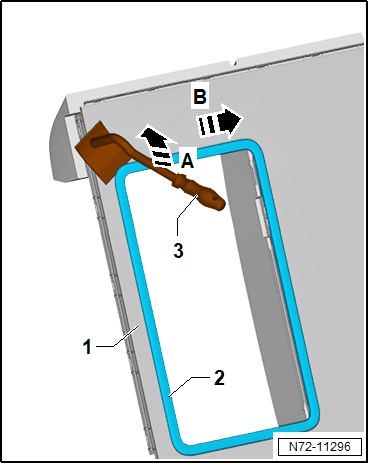

-- Use the :T10039 -3- to pry the cover frame -2- out of the rear seat backrest -1- -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Start in the upper left corner and continue in the direction of -arrow B-.

-- Remove the pass-through cover frame.

-- Push the backrest cushion with backrest cover slightly aside, and unclip the pass-through door stop strip -1- from the rear seat backrest in direction of -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the stop strip for the pass-through door.
