Overview - Center Armrest

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

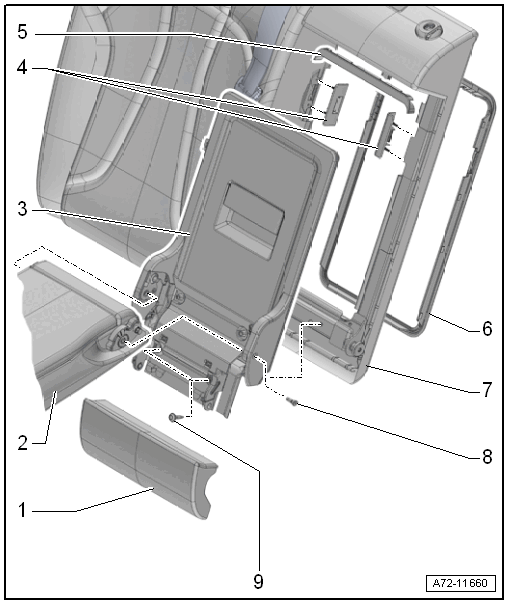

Fig 1: Exploded View Of Center Armrest Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Cushion
- Allocation. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, BACKREST WITH PASS-THROUGH .
Center Armrest
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
Lid
- For pass-through
- Removing and Installing. Refer to PASS-THROUGH DOOR, REMOVING AND INSTALLING .
Trim
- For the rear lid locking mechanism
- Removing and Installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
Stop Strip
- Clipped into the rear seat backrest
- Removing and Installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
Cover Frame
- For pass-through
- Clipped into the rear seat backrest
- Removing and Installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
Right 2/3 Rear Seat Backrest
- With pass-through
- Allocation. Refer to the appropriate Parts Information.
Bolt
- 12 Nm
- Replace after removing.
- Quantity: 2
- Self-tapping
Bolt
- 8 Nm
- Quantity: 2
