Overview - Bench Seat/Single Seats

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

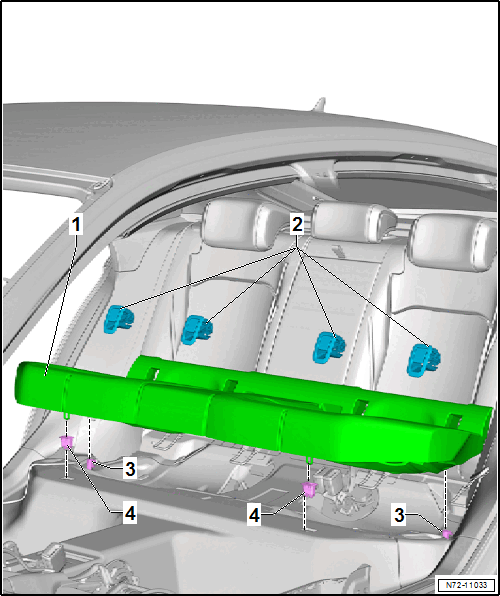

Fig 1: Exploded View Of Bench Seat/Single Seats

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Bench Seat
- Allocation. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
"LATCH Trims"
- For the child seat anchor
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
Hook
- Engages in the rear bench seat wire frame
- Quantity: 2
Retainers
- Replace if damaged
- For securing the rear bench seat
- Quantity: 2
