Bench Seat/Single Seat, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

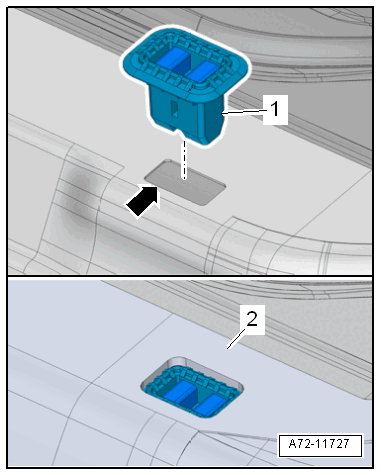

Fig 1: Identifying Seat Mounting Grommets

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal and note the following:

-- Check the body openings -arrow- for deformations.

-- In the case of deformation, readjust the panel with a plastic hammer.

NOTE:

Remaining minor deformation is permissible.

-- Lift the carpet -2-.

-- Push the new mounting grommets -1- into the opening in the body -arrow- until they engage audibly.

-- Place the carpet around the grommet as shown.

NOTE:

The carpet must not cover the grommet.

-- Check if the wire frame is aligned in the marked area -arrows- before installing the rear bench seat.

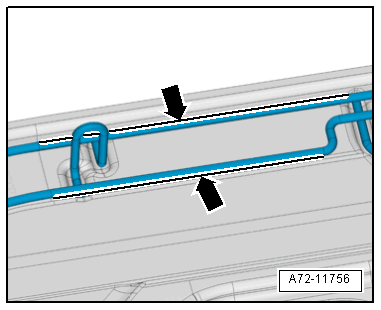

Fig 2: Inspecting Wire Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the wire frame is bent, bend it back far enough until it is realigned.

-- In vehicles equipped with seat heating, connect the seat heating connector.

-- Install the rear bench seat and push the wire hooks into the mounting grommets.

-- Make sure the wire hooks are engaged correctly in the grommets.
