Seat Pan Lower Frame With Driver/Front Passenger Seat Forward/Back Adjustment Motor -V28- / -V31-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seat to the highest position possible to keep the torsion bar tension as low as possible.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Disconnect the connectors to the Driver Seat Forward/Back Adjustment Motor -V28- / Front Passenger Seat Forward/Back Adjustment Motor -V31-.

-- Unclip the wire from the seat pan and move to the side.

-- Remove the front seat belt latch. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .

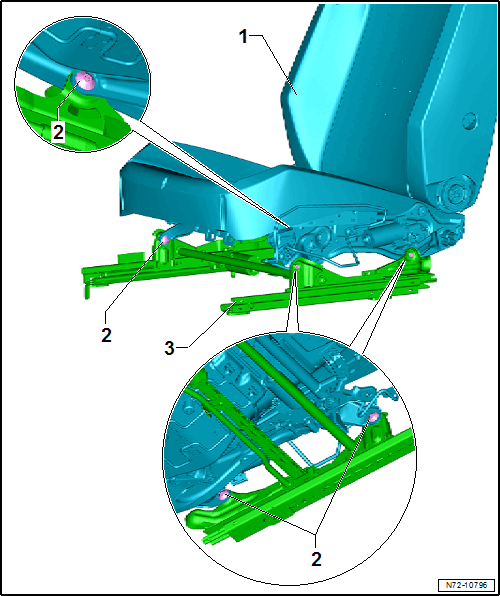

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seat pan -1- from the lower frame -3-.

If the bushings -1- are damaged, the seat pan lower frame -2- must be replaced.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Risk of damaging the bushings -1- in the bearing points -2- (upper/lower frame bolted connection).

The bushings cannot be replaced with workshop materials.

If the bushings are damaged, the corresponding parts must be replaced.
