Overview - Seat Pan, With Seat Ventilation

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview shows the driver side as an example.

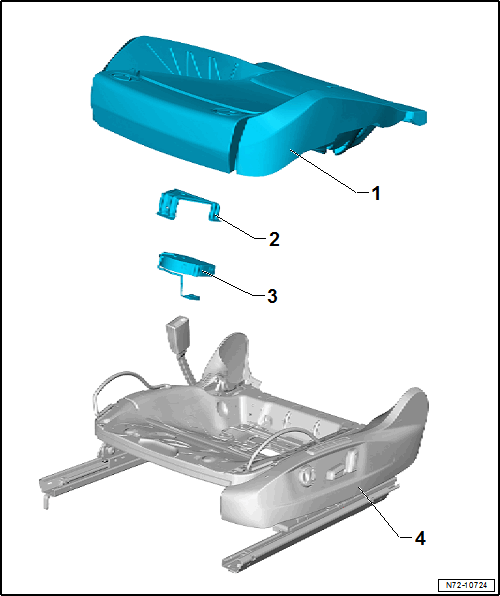

Fig 1: Exploded View Of Seat Pan, With Seat Ventilation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Seat Pan Cover and Padding, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Seat pan cover and cushion, separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Seat Blower Fan Reinforcement
- Component of the seat cushion
Seat Cushion Fan
- Left Front Seat Cushion Fan 1 -V514-
- Right Front Seat Cushion Fan 1 -V518-
- If there is a fault, replace the respective seat cushion
Seat Pan
