Overview - Seat Pan, Power Seat

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview shows the driver side as an example.

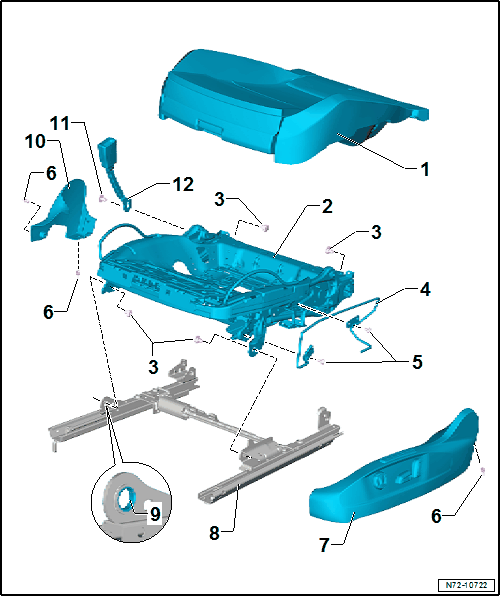

Fig 1: Exploded View Of Seat Pan, Power Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Seat Pan Cover and Padding, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Seat pan cover and cushion, separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Seat Pan
- When using the seat frame for a Standard seat, remove the Sport bracket.
Bolt
- Quantity: 4
- Self-locking
- Replace after removing
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
- 22 Nm
Bracket
- For the sill-side seat trim panel
- Removing and Installing. Refer to SEAT TRIM PANEL BRACKET, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Expanding Rivet
Seat Trim Panel
- Sill-side
- Removing and Installing. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING .
Seat Pan Lower Frame
- Driver Seat Forward/Back Adjustment Motor -V28-
- Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Cannot be disassembled
- To replace the seat belt latch install in the new lower frame
- Removing and Installing. Refer to SEAT PAN LOWER FRAME WITH DRIVER/FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR -V28- / -V31-, REMOVING AND INSTALLING .
Bushing
- Inserted in all bearing locations
- Cannot be replaced with service equipment
- If the bushing is damaged, the seat pan lower frame must be replaced
Seat Trim Panel
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT TRIM, REMOVING AND INSTALLING .
Bolt
- Replace every time it is loosened
- 40 Nm
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
