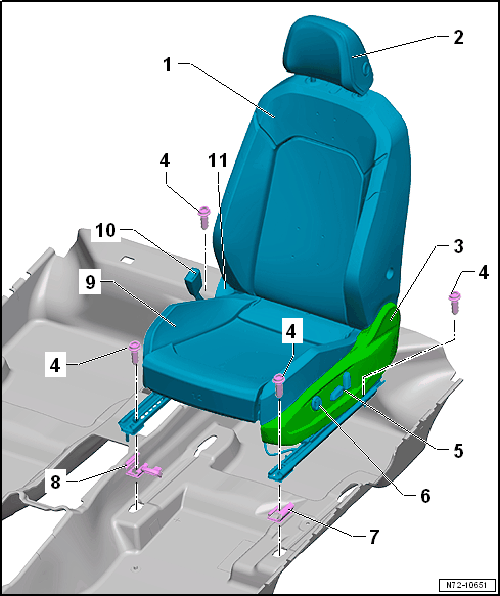

Overview - Front Seat, Power Seat
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the driver side as an example.
- Backrest
- Overview. Refer to OVERVIEW - FRONT BACKREST .
- Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
- Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Sill-Side Seat Trim Panel
- Removing and Installing. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 40 Nm
- Seat Adjustment Control Head
- Driver Seat Adjustment Control Head -E470-
- Front Passenger Seat Adjustment Control Head -E471-
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
- Lumbar Support Adjustment Switch
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
- Cover
- For sill-side seat rail
- Installed in rear and front
- Quantity: 2
- Loosen and remove from the seat rail by carefully releasing the retaining tabs without breaking them using a screwdriver.
- Carefully push onto the seat rail until it engages audibly
- Cover
- For tunnel side seat rail
- Quantity: 2
- Installed in rear and front
- Loosen and remove from the seat rail by carefully releasing the retaining tabs without breaking them using a screwdriver.
- Carefully push onto the seat rail until it engages audibly
- Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
- Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Tunnel-Side Seat Trim Panel
- Removing and Installing. Refer to TUNNEL-SIDE SEAT TRIM, REMOVING AND INSTALLING .
