Overview - Front Backrest, With Seat Ventilation

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview shows the driver side as an example.

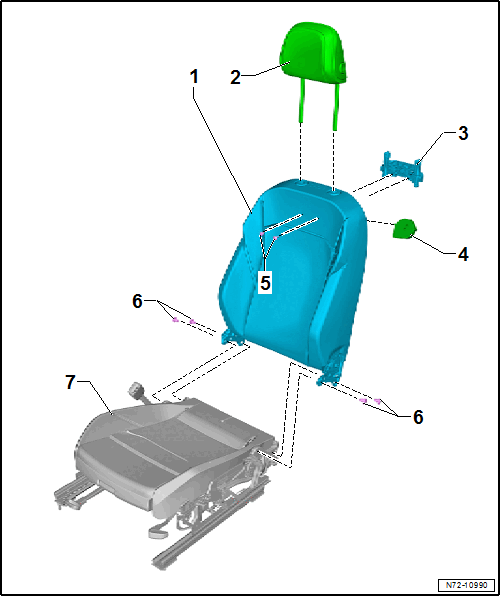

Fig 1: Exploded View Of Front Backrest, With Seat Ventilation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Backrest
- Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
- Backrest Cover and Cushion, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- With power lumbar support. Refer to OVERVIEW - FRONT BACKREST, POWER LUMBAR SUPPORT .
Headrest
- Must be correctly locked in the headrest guide
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Headrest Guide
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Backrest Blower Fan
- Left Front Seat Backrest Fan 1 -V512-
- Right Front Seat Backrest Fan 1 -V516-
- If there is a fault, replace the respective backrest cushion
Bolts
- For headrest guide
- 2 Nm
Bolts
- Self-locking
- Replace after removing
- Tightening specification and sequence. Refer to Figure.
Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
