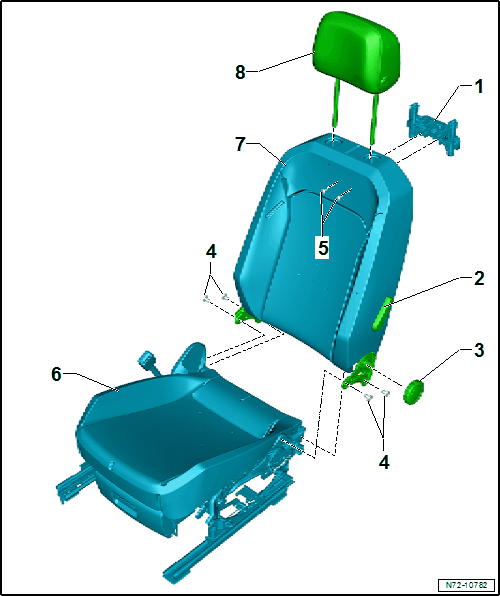

Overview - Front Backrest, Standard Seat, Ergo Comfort
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the driver side as an example.
- Headrest Guide
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Lever
- Only for vehicles with manual lumbar support adjustment
- Only for the front passenger side
- Removing and Installing. Refer to LUMBAR SUPPORT ADJUSTING MECHANISM, REMOVING AND INSTALLING .
- Hand Wheel
- Only for vehicles with manual backrest adjustment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Bolts
- Self-locking
- Replace after removing
- Tightening specification and sequence. Refer to Figure.
- Bolts
- For headrest guide
- 2 Nm
- Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
- Backrest
- Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
- Backrest Cover and Cushion, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Depending on vehicle equipment with power lumbar support. Refer to OVERVIEW - FRONT BACKREST, POWER LUMBAR SUPPORT .
- Headrest
- Must be correctly locked in the headrest guide
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
