Overview - Fire Extinguisher

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

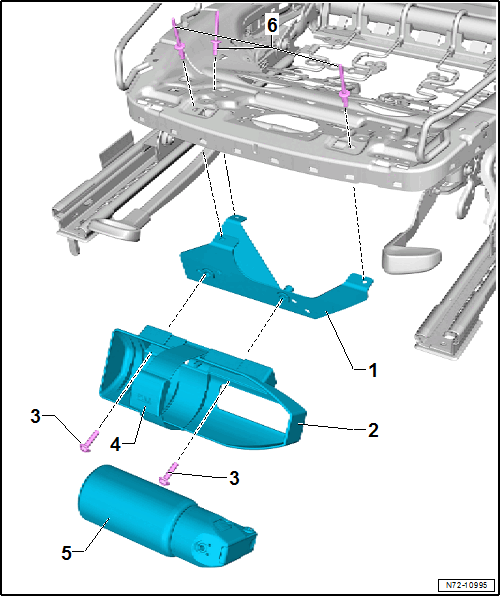

Fig 1: Exploded View Of Fire Extinguisher
GWWN72-10995Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bracket
    • On the seat pan
  2. Bracket
  3. Bolts
    • 8 Nm
  4. Mounting Strap
  5. Fire Extinguisher
  6. Rivet
