Backrest Kick And Puncture Protection, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

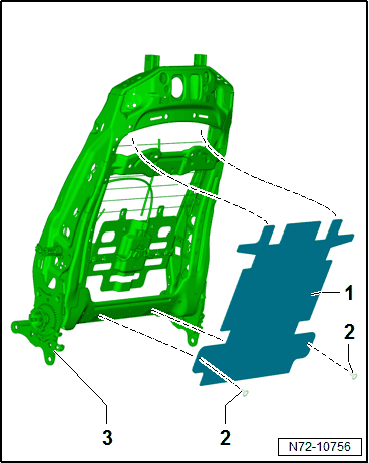

-- At the top of the kick protection -1-, remove both surfaces bonded at the sides from the backrest frame -3-.
-- Unclip the two push buttons -2- from the backrest frame -3- using the :T10236 .
-- Remove the kick protection -1- from the backrest frame -3-.
