Backrest Adjustment Handle, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

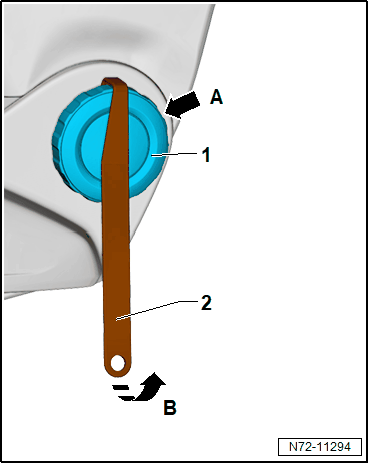

-- Turn the backrest adjuster -1- until the catch -arrow A- is visible. Use a flashlight if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :3399 -2- and lift it in the direction of -arrow B-.

-- Turn the backrest adjuster 120° farther.

-- Insert the :3399 -2- and lift it in the direction of -arrow B-.

-- Remove the backrest adjuster.
