Airbag Adapter, Connecting And Disconnecting

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

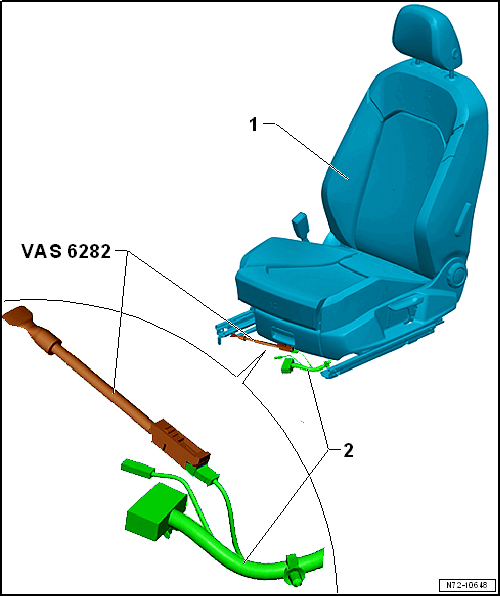

-- Connect the Airbag Lockout Adapter:VAS6282  to the thorax airbag wiring harness -2- from the seat -1-.

GWWN72-10648Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The Airbag Lockout Adapter:VAS6282  must stay connected to seat until the seat is installed again.
