Rear Thorax Airbag With Igniter, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Observe the general safety precautions for pyrotechnical components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

Observe the additional safety precautions for the thorax airbag. Refer to ADDITIONAL THORAX AIRBAG SAFETY PRECAUTIONS .

Observe the disposal regulations for pyrotechnical components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

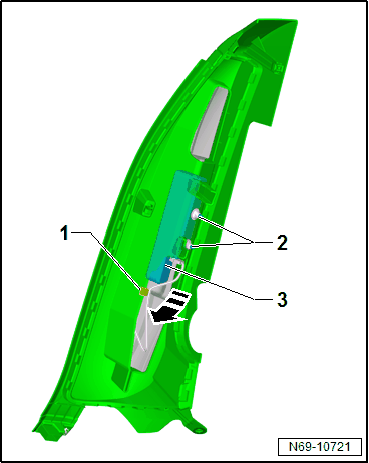

-- Remove the two nuts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clip -1- from the seat bolster.

-- Remove the thorax airbag -3- from the airbag compartment and disconnect the connector.
