Rear Seat Belt Guide, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

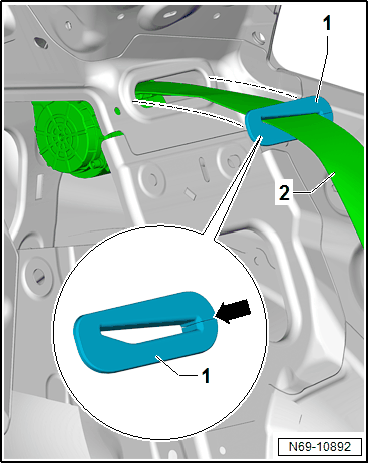

-- Use a screwdriver to release the seat belt guide retainers -1-.

GWWN69-10892Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the seat belt guide -1- in the direction of travel.

-- Open the side hinge -arrow- and pull the seat belt webbing out of the seat belt guide -1-.
