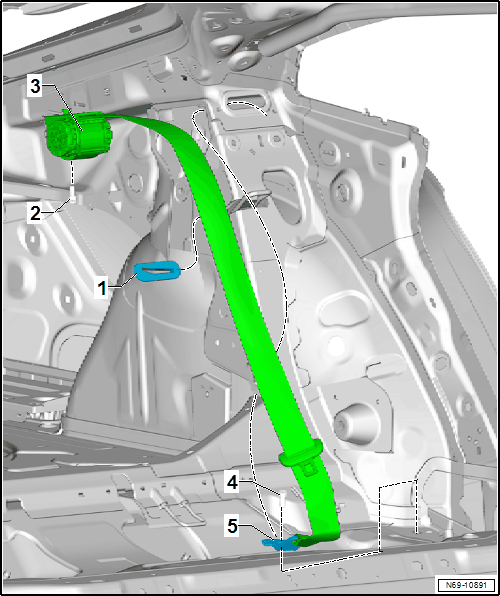

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the left side of the vehicle as an example.
- Seat Belt Guide
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor
- Removing and Installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Outer Rear Belt End Fitting
- Removing and Installing. Refer to OUTER REAR BELT END FITTING, REMOVING AND INSTALLING .
