Overview - Front Three-Point Seat Belt, Market-Specific

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The overview shows the left side of the vehicle as an example.

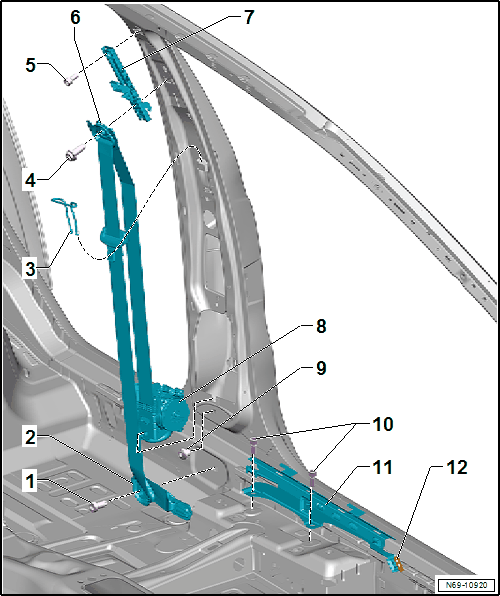

Fig 1: Exploded View Of Front Three-Point Seat Belt, Market-Specific
GWWN69-10920Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  2. Belt End Fitting
  3. Front Seat Belt Guide
  4. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  5. Bolt
    • 20 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  6. Seat Belt Guide
    • Must swing into vertical position or carrier direction by itself after tightening the screw.
  7. Seat Belt Height Adjuster
  8. Automatic Belt Retractor
    • Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
    • For vehicles with Left Front Seat Belt Tensioner Control Module -J854- or Right Front Seat Belt Tensioner Control Module -J855-, the components must be adapted to the Airbag Control Module -J234- after replacing the seat belt. Refer to Guided Fault Finding. If the Guided Fault Finding has already started, update the test plan "15 - Airbag".
  9. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  10. Bolt
    • 20 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • Quantity: 2
  11. Seat Belt Tensioner
  12. Connector
