Outer Rear Belt End Fitting, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

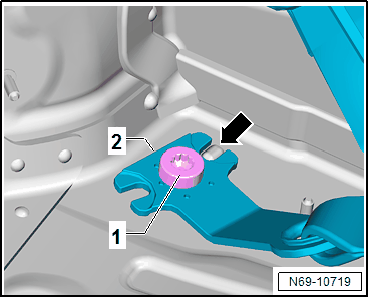

The anti-twist mechanism -arrow- on the floor panel must rest in the belt end fitting opening -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the belt end fitting -2- with the bolt -1-.

-- Remove the rear sill trim. Refer to REAR SILL PANEL, REMOVING AND INSTALLING .
