Front Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

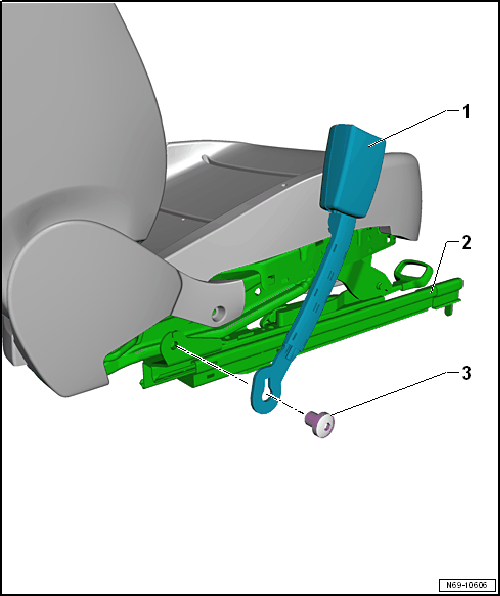

Fig 1: Exploded View Of Front Seat Belt Latch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the seat belt latch connector from the connector station underneath the seat frame.

-- Loosen the wire from the seat frame.

-- Remove the bolt -3- and then remove the seat belt latch -1- from the seat -2-.
