Front Belt End Fitting, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Front seat positioned all the forward and raised all the way up.
-- Fold the service door in the sill panel strip near the belt end fitting toward the inside.

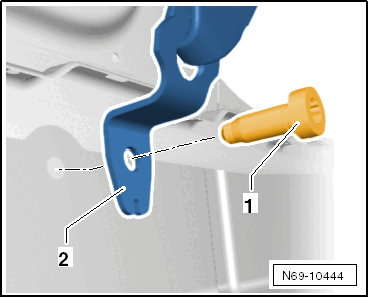

-- Remove the bolt -1- and detach the belt end fitting -2- from the body.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
