Pedestrian Protection Crash Sensor -G570- / -G571-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the battery ground cable when the ignition is turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

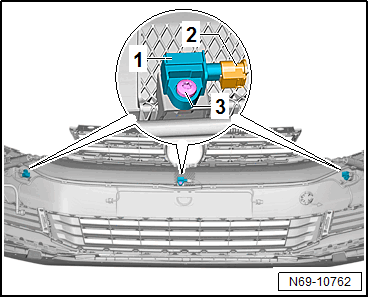

-- Remove each of the bolts -3- and remove the crash sensor from the bumper.
-- Disconnect the connector -2-.
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge static electricity: briefly touch the door striker.
-- To do this pull out the connector lock -2-, push down -arrow-, and disconnect the connector -1- on the crash sensor.
