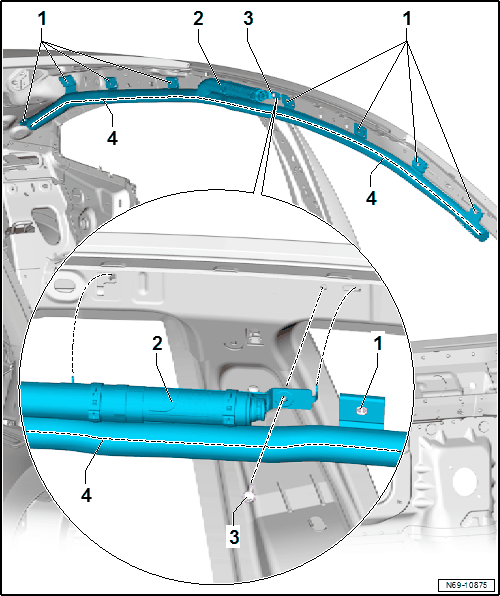

Overview - Head Curtain Airbag
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following describes for example the removing and installing on the left side of the vehicle.
- Clip
- Quantity: 8
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .NOTE:
Observe the general safety precautions for pyrotechnical components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Observe the additional safety precautions for the head curtain airbag. Refer to ADDITIONAL HEAD CURTAIN AIRBAG SAFETY PRECAUTIONS .
Observe the disposal regulations for pyrotechnical components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .
- Screw
- 4 Nm
- Replace after removing.
- Anti-Rotation Protection Line
- Serves as anti-twist mechanism
- must be visible after assembly.
