Overview - Rear Child Seat Anchors

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

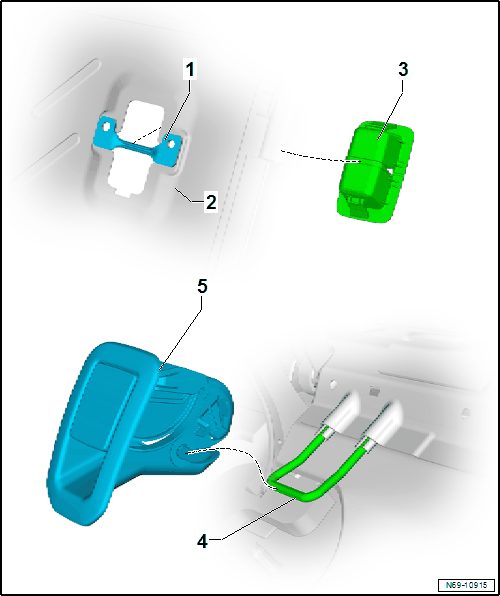

Fig 1: Exploded View Of Rear Child Seat Anchors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

"Child Seat Anchor Top Tether"
- Welded to the backrest frame
- Quantity: 2
Rear Seat Backrest
Cover
- For "Top Tether child seat anchor"
- Removing and Installing. Refer to "Top Tether Child Seat Anchor", REMOVING AND INSTALLING .
- Engage in the anchor and press on it until it engages audibly
- Can only be pushed in one position in the rear seat backrest
- Quantity: 2
"LATCH Child Seat Anchor"
- Welded to the underbody
- Quantity: 4
"LATCH Trim"
- For the "LATCH child seat anchor"
- Removing and Installing. Refer to "LATCH Child Seat Anchor", REMOVING AND INSTALLING .
- Dual clips
- Quantity: 4
