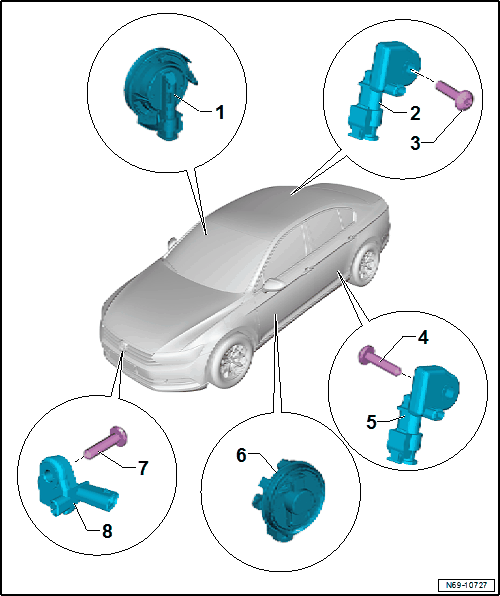

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: under the rear sill panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Screw
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: under the rear sill panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Airbag Crash Sensor -G190-
- Component location: in the vehicle center on the lock carrier
- Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR, REMOVING AND INSTALLING .
