Sill Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

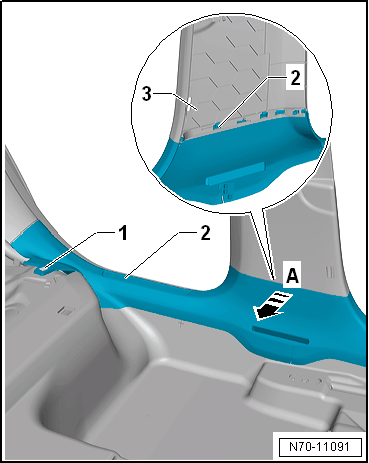

-- Remove the expanding clip -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the locking tabs from the sill panel -2- from the B-pillar lower trim panel -3- in direction of -arrow A- using the :VAS895015 .

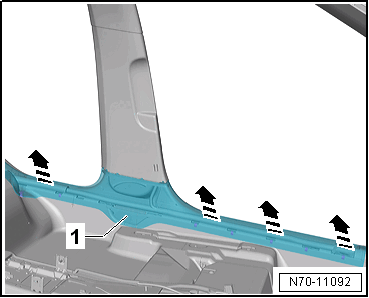

-- Loosen the sill panel -1- out of the sill panel and the door seal molding in direction of -arrows- using the :VAS895015 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the sill panel -1- slightly forward at the same time.

-- Open the seat belt guide cover and guide the seat belt out.

-- Remove the sill panel.
