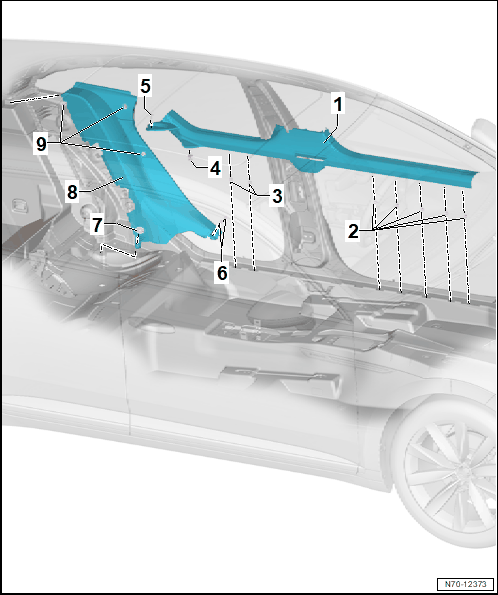

Overview - Sill Panels, ARTEON
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the left side of the vehicle as an example.
- Sill Panel
- Removing and Installing. Refer to SILL PANEL, REMOVING AND INSTALLING .
- Clip
- Replace damaged or deformed clips
- Insert in the sill panel
- Bushing
- Insert in the body
- Clip
- Clip
- Lock Washer
- Clip
- Rear Sill Panel. Refer to REAR SILL PANEL STRIP, REMOVING AND INSTALLING, ARTEON .
- Clip
- Replace damaged or deformed clips
- Insert in the rear sill panel
