Overview - B-Pillar Trim Panel
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

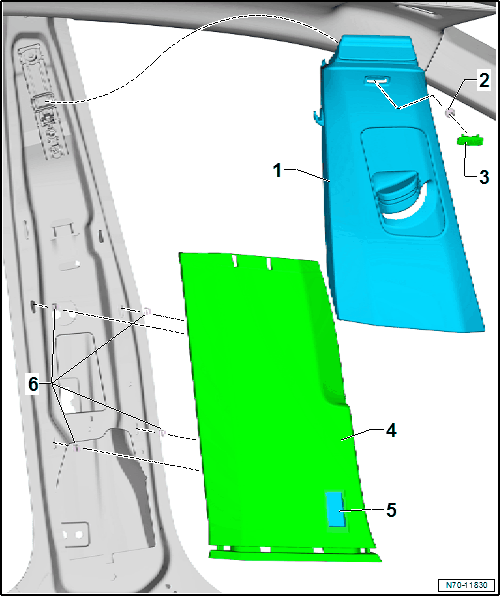

The overview shows the left side of the vehicle as an example.
- B-Pillar Upper Trim Panel
- Removing and Installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Screw
- 4.5 Nm
- Cap
- Replace if damaged
- With the "Airbag" symbol
- B-Pillar Lower Trim Panel
- Removing and Installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Removing and installing. Refer to the appropriate Service Information .
- Clips
- Replace damaged or deformed clips
- Insert in the trim panel
