B-Pillar Trim Panel, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Removal Wedge Set:VAS895015
Omega Clip Tool:T40280

NOTE:

The following describes for example the removing and installing on the left side of the vehicle.

Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

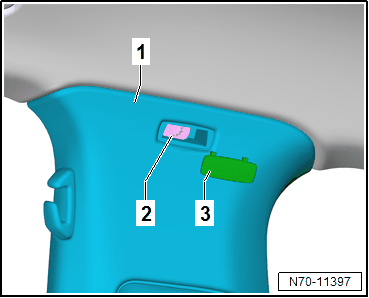

-- Pry the cap -3- with the "airbag" symbol out of the trim panel -1- using a screwdriver, replace if damaged.

-- Remove the bolt -2-.
