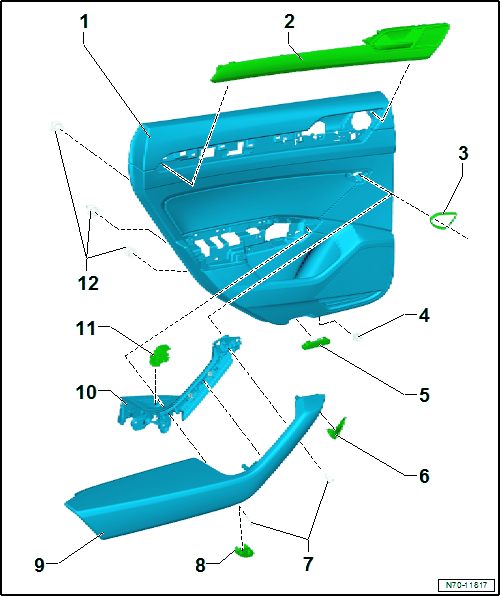

Overview - Rear Door Trim Panel
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the left side of the vehicle as an example.
- Rear Door Trim Panel
- Removing and Installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Decorative Trim
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
- Door Pull Handle Decorative Trim
- Rotating Clip
- Rear Reflector
- Upper Cover
- For securing the door trim panel
- Screws
- 4.5 Nm
- Secures the door trim panel
- Lower Cover
- For securing the door trim panel
- Armrest
- Removing and Installing. Refer to REAR ARMREST, REMOVING AND INSTALLING .
- Base Plate
- Power Window Switch in the Rear Door
- Driver side: Power Window Switch in Left Rear Door -E52-
- Passenger side: Power Window Switch in Right Rear Door -E54-
- Clip
- Replace damaged or deformed clips
- Insert in the door trim panel
- Quantity: 6
