Rear Lid Upper Trim Panel, Removing And Installing, ARTEON: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, ARTEON .

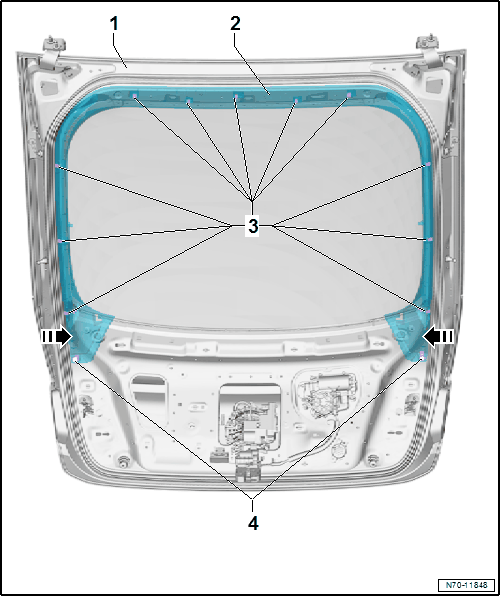

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clip -4-.

-- Starting at the bottom -arrows-, detach the clips -3- on the rear lid upper trim panel -2- from the rear lid mounts -1- using the :T10383 .

-- Remove the rear lid upper trim panel -2-.
