Rear Lid Lower Trim Panel, Removing And Installing, ARTEON: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

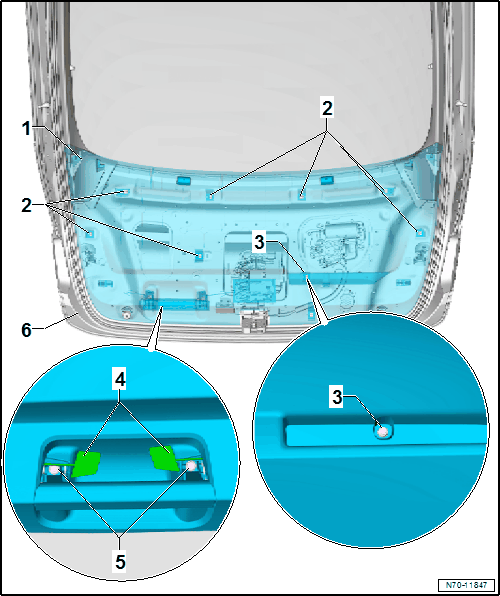

-- Remove the bolt -3-.
-- Unclip the bolt covers -4- on the handle using the :T10383 .
-- Remove the screws -5- from the handle.
-- Slide the :T10383 between the trim panel -1- and the rear lid -6-.
-- Detach the trim panel -1- by hand from the rear lid mounts -6- using a >>forceful pulling motion<<.
