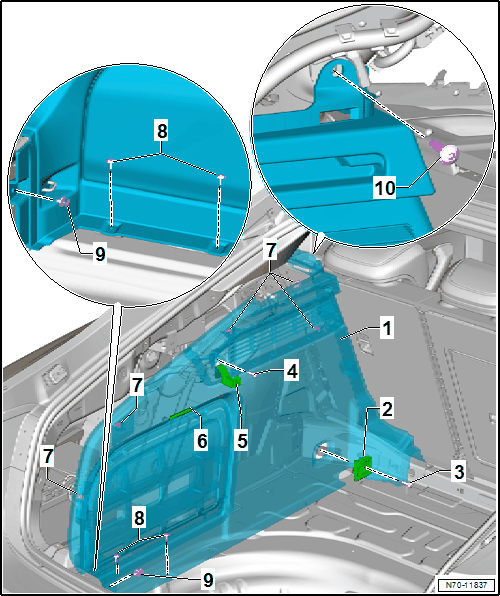

Overview - Luggage Compartment Side Trim Panel, ARTEON
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the left side of the vehicle as an example.
- Luggage Compartment Side Trim Panel
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Tie Down
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- 6 Nm
- Bag Hooks
- Inserted into the trim panel from behind
- To remove, remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, ARTEON .
- Luggage Compartment Lamp
- Removing and Installing. Refer to the appropriate Service Information .
- Clip
- Quantity: 5
- Insert in the trim panel
- Replace damaged or deformed clips
- Bolt
- 1.5 Nm
- Clip
- Replace a damaged or deformed clip
- Bolt
- 6 Nm
