Lock Carrier Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the luggage compartment floor toward the rear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

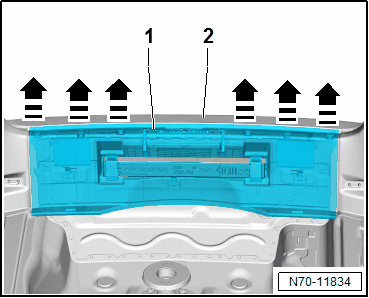

-- Detach the lock carrier trim panel -1- from the molding for the rear lid seal -2-.

-- Loosen the lock carrier trim panel -1- in the area of the clips -arrows- out of the mounts from the body using the :VAS895 015 .

-- Remove the lock carrier trim panel -1- upward -arrows-.
