Overview - Windshield Projection Cover And Trim (Head Up Display)

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

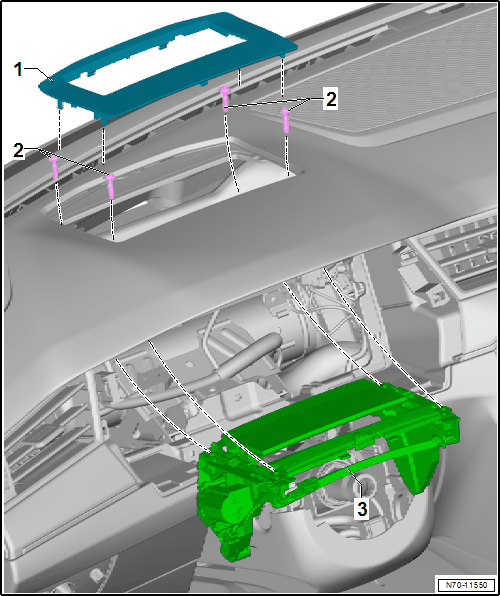

Fig 1: Exploded View Of Windshield Projection Cover And Trim (Head Up Display)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Windshield Projection Trim (Head Up Display)
- Removing and Installing. Refer to WINDSHIELD PROJECTION (HEAD-UP DISPLAY) TRIM, REMOVING AND INSTALLING .
Bolts
- When installing, pay attention to the specified tightening sequence
- 1.5 Nm
Windshield Projection Cover (Head Up Display)
- Removing and Installing. Refer to INSTRUMENT PANEL/WINDSHIELD PROJECTION (HEAD-UP DISPLAY) COVER, REMOVING AND INSTALLING .
