Overview - Instrument Panel (Instrument Cluster With Analog Instruments)

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

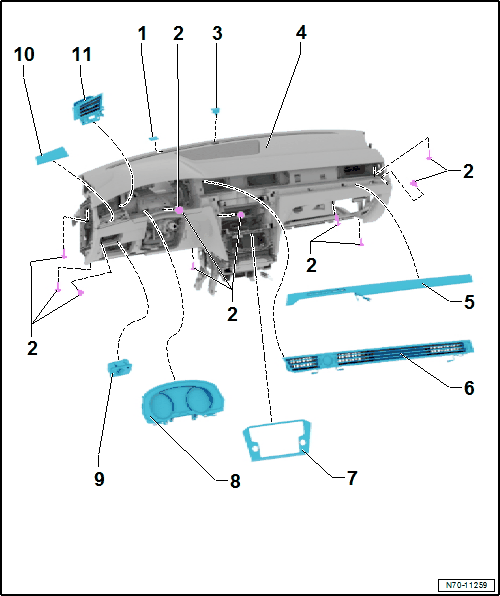

Fig 1: Exploded View Of Instrument Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rubber Buffer
- Quantity: 3
- Pushed on the instrument panel mount under the windshield frame
Bolt
- 1.5 Nm
Cap or Sunlight Photo Sensor -G107-
- Depending on the vehicle equipment
- Sunlight Photo Sensor -G107-, Removing and Installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
Instrument Panel
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Instrument Panel Decorative Trim
- Front passenger side
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Instrument Panel Vent
- Front passenger side
- Removing and Installing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Radio/Navigation System Frame
- Removing and Installing. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING .
Instrument Cluster
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Rotary Light Switch -EX1-
- Removing and Installing. Refer to the appropriate Service Information .
Instrument Panel Decorative Trim
- Driver side
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Instrument Panel Vent
- Driver side
- Removing and Installing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
