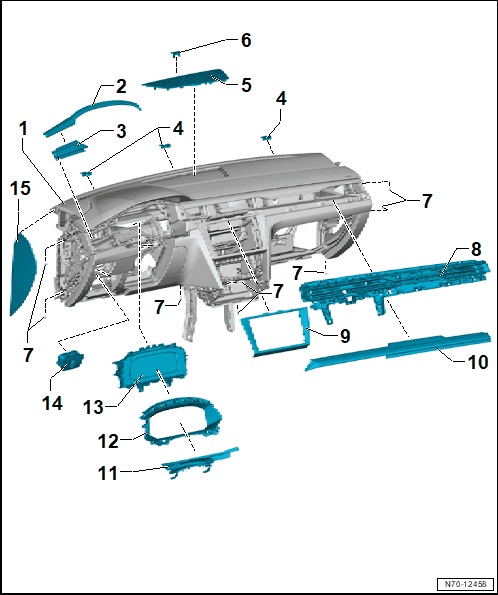

Overview - Instrument Panel (Fully Digital Instrument Cluster)
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Panel
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Instrument Panel Decorative Trim
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .
- Instrument Panel Decorative Trim
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM WITH AMBIENT LIGHTING, REMOVING AND INSTALLING .
- Rubber Buffer
- Quantity: 3
- Pushed on the instrument panel mount under the windshield frame
- Speaker Trim
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Cap or Sunlight Photo Sensor -G107-
- Depending on the vehicle equipment
- Sunlight Photo Sensor -G107-, Removing and Installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Instrument Panel Vent
- Front passenger side
- Removing and Installing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Radio/Navigation System Frame
- Removing and Installing. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .
- Instrument Panel Decorative Trim
- Front passenger side
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM WITH AMBIENT LIGHTING, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .
- Instrument Cluster Gap Cover, Removing and Installing
- Removing and Installing. Refer to STEERING COLUMN UPPER TRIM PANEL, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .
- Instrument Cluster Trim
- Removing and Installing. Refer to FULLY DIGITAL INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Instrument Cluster
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Rotary Light Switch -EX1-
- Removing and Installing. Refer to the appropriate Service Information .
- Instrument Panel Side Cover
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
