Windshield Projection (Head-Up Display) Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

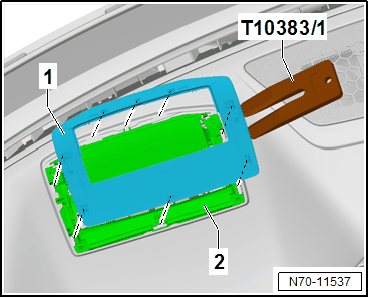

-- Carefully loosen and lift the windshield projection trim -1- using the :VAS895 015 .

-- Pull the windshield projection trim -1- out of the instrument panel -2- and remove it upward.
